OVERVIEW

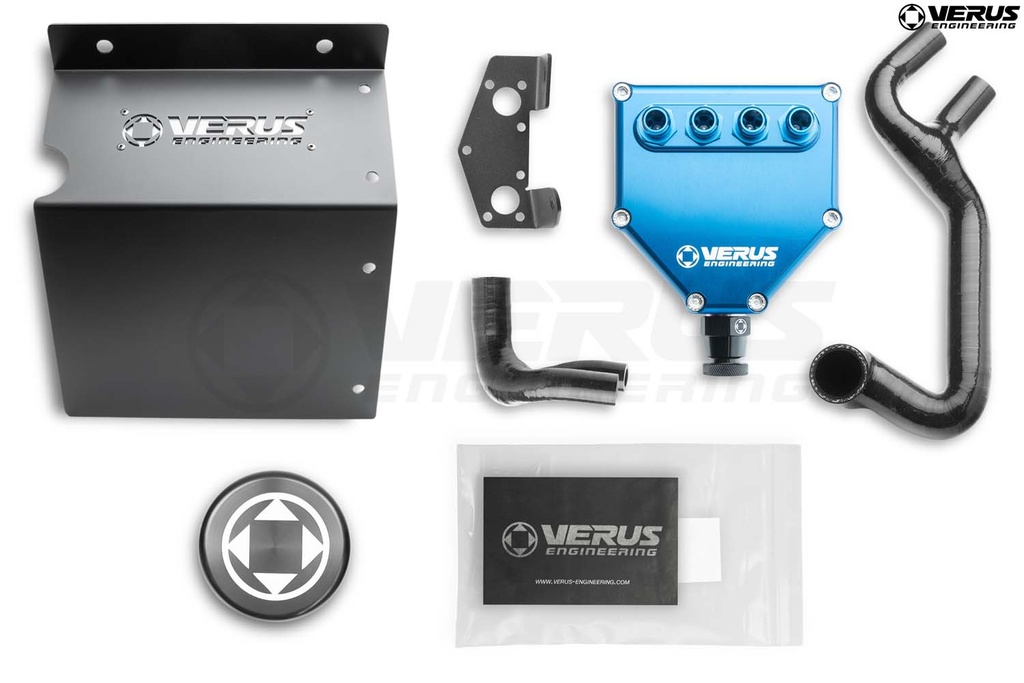

Introducing our Verus Engineering 2-Port Turbo Heat Shield & AOS Bundle for the 2020 MKV Supra. Since all of these components are in the same localized area, we felt this was a logical package for the Supra enthusiast that is looking to kill 2 birds with one stone.
The heat shield is produced from 2.0mm thick stainless steel sheet metal which is CNC laser cut, CNC bent, and then finished in high-temp Cerakote. The heat shield was designed off scan data obtained internally for an OE like fit.
Protect the B58 engine from blow-by with the Verus Engineering Air Oil Separator (AOS). The unit ensures the intake system remains oil-free. Oil in the intake system reduces octane, which can lead to detonation, reduction in power, and carbon build-up.
(4) 5-micron coalescent filters, baffling, and stainless mesh offer unprecedented air filtration for the crankcase air. Specifically molded silicone hose makes install extremely simple and carefree. Large diameter hoses keep pressure drop minimal.
When utilizing this whole bundle, you can expect a better-looking engine bay, better thermal properties, less heat soak, and an oil free intake. To top things off, we've added the Resonator Delete to seamlessly tie everything together.
*Please Note: This only fits on 2020 GR Supra with the Two-Port Manifold! Only works with 3.0L models.* For 2021+, check out our 6-Port Turbo Heat Shield & AOS Bundle.
Heat Shield Features:
- Excellent Coverage of Turbine-Fold Area
- Improved Engine Bay Aesthetics
- Available in Black and Titanium Cerakote
- Improved Heat Rejection Characteristics
- Simple Bolt-On Install
Heat Shield Features:
- Excellent Coverage of Turbine-Fold Area
- Improved Engine Bay Aesthetics
- Thick 2.0mm Stainless Construction
- Improved Heat Rejection Characteristics
- Simple Bolt-On Install
Heat Shield Specifications:
- 2.0mm Thick 304 Stainless Sheet
- CNC Laser Cut
- CNC Press Brake Formed
- Cerakote High-Temp Coated
- Stainless Hardware Throughout
Heat Shield Specifications:
- 2.0mm Thick 304 Stainless Sheet
- CNC Laser Cut
- CNC Press Break Formed
- Cerakote High-Temp Coated
- Stainless Hardware
AOS Features:
- 5-Micron Coalescent Filters for Superior Oil Separation
- Small and Compact Design Package
- Prevents Oil from Getting in the Intake System
- Baffles for Further Separation of Oil Particles
- Reduces Chance of Knock from Lowered Octane
- Reduces Carbon Build-Up on Intake Valves
- Reduces Loss in Power due to Reduced Octane
AOS Features:
- (4) 5-Micron Coalescent Filters for Superior Oil Separation
- Small and Compact Design Package
- Prevents Oil from Getting in the Intake System
- Baffles for Further Separation of Oil Particles
- Reduces Chance of Knock from Lowered Octane
- Reduces Carbon Build-Up on Intake Valves
- Reduces Loss in Power due to Reduced Octane
AOS Specifications:
- CNC Machined from 6061-T6 Aluminum
- Laser Engraved to Ensure Authenticity
- Mil-Spec O-Ring Bosses
- Anodized Three Popular Colors
- Made with Pride in Indianapolis, U.S.A.
- Preformed Silicone Hoses
AOS Specifications:
- CNC Machined from 6061-T6
- CNC Laser Engraved
- Mil-Spec O-Ring Bosses
- Anodized Three Popular Colors
- Made in the U.S.A.
- Preformed Silicone Hoses
The Resonator Delete:
To tie everything together, we include our Resonator Delete machined out of 6061-T6 Aluminum. This creates room for the AOS and adds a polished finish to the entire kit by covering the gaping hole left behind by the factory resonator.
The Resonator Delete:
To tie everything together, we include our Resonator Delete machined out of 6061-T6 Aluminum. This creates room for the AOS and adds a polished finish to the entire kit by covering the gaping hole left behind bby the factory resonator.
