OVERVIEW
Out of necessity, we had to develop and improve upon the OEM clutch fork. The OE stamped steel units are prone to cracking, bending, and failing in all conditions, from OEM clutches to heavy-duty dual disks. We highly recommend installing our clutch fork anytime the transmission and engine are disconnected as it is inexpensive insurance to solve a prevalent issue within the Subaru community.
Our forged fork was designed utilizing advanced FEA (Finite Element Analysis) to dramatically increase strength, rigidity, and overall longevity. The unit is forged from 4130, heat-treated, and then cryo treated for superior physical properties.
The clutch fork fits a variety of Subaru makes and models; please refer to our fitment chart at the bottom of this page.
WHAT IS INCLUDED

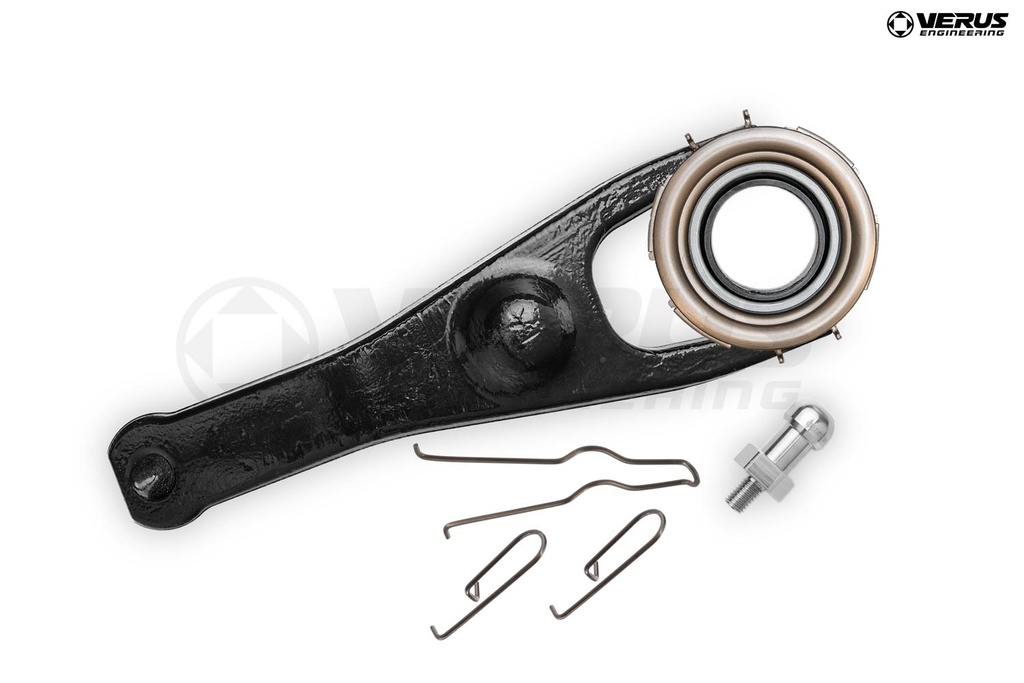

- Forged Clutch Fork (A0092A)
- Forged Clutch Fork + Billet Clutch Fork Pivot + OEM TOB (A0746A)
- Forged Clutch Fork + Billet Clutch Fork Pivot + BGRS TOB (A0747A)
- Forged Clutch Fork + Billet Clutch Fork Pivot (A0748A)

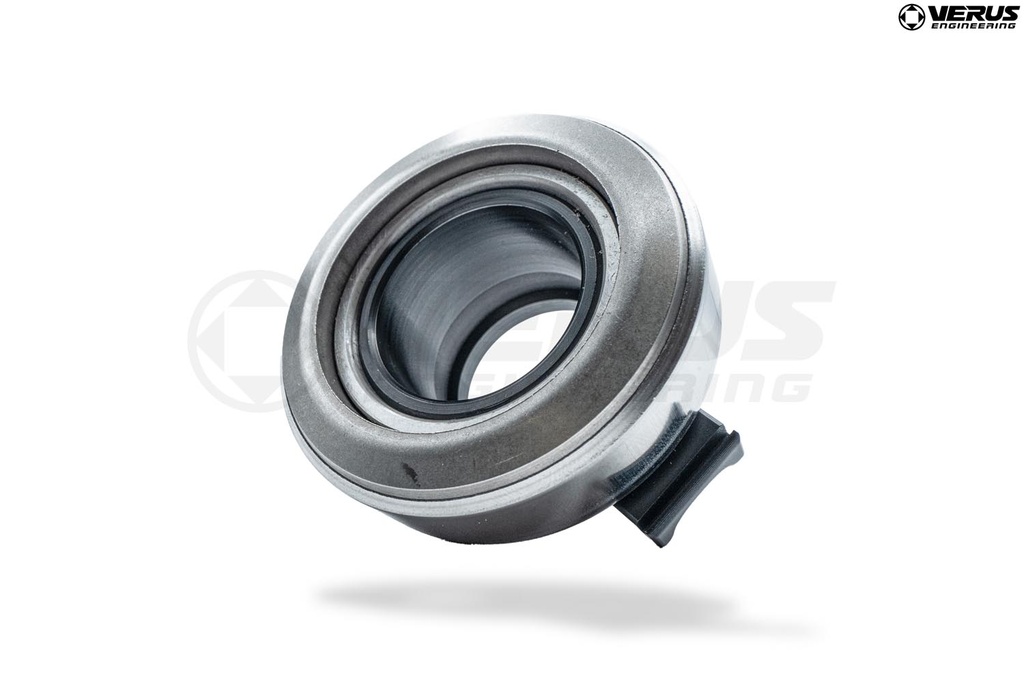

- Forged Clutch Fork + OEM TOB (A0749A)
- Forged Clutch Fork + BGRS TOB (A0750A)
PART NUMBER
A0092A
OE #: 30531AA220 (Supersessions: 30530AA020 and 30530AA021)
A0746A
A0747A
A0748A
A0749A
A0750A
INSTALL AND DATA
Features:
Increase Strength
Increase Rigidity
Improve Pedal Feel
Increase Longevity of Clutch Fork
OEM Fit and Finish
Rated for Use in Applications Exceeding 1000 LBS of Pressure Plate Use
Specifications:
FEA Optimized Design
Forged 4130 Chromoly Steel
Heat Treated to Hardness of 26-32 HRC
Cryo-treated for Improved Physical Properties
Black Oxide Coated for Rust Resistance
Science:
As shown above, you can see the severe decrease of stress concentrations moving from OEM to machined, to finally forged. All graphs are set the exact same, with yield strength at the limit of the color code (red). Warmer colors, like red and purple, show areas over yield strength. The cooler colors, like deep blue, represent areas of low stress. The Verus Engineering clutch fork has improved again in strength as a result of the forging process when compared to the machined and OE component. This will ultimately mean a longer and better life out of your driveline components, including your clutch, transmission, and of course your clutch fork.
Clutch Fork Compatibility With Other Subaru Models:
- Subaru Baja, S Pick-Up, 2002-2006
- Subaru Baja, Pick-Up, 2002-2006
- Subaru Baja, B Pick-Up, 2003
- Subaru Crosstrek 2.0 L Base, 2015-2016
- Subaru Crosstrek 2.0L Premium,2013-2016
- Subaru Forester, 2.5L Base, Premium, 2014-2017
- Subaru Forester, 2.5L Limited, Plus, 2017
- Subaru Forester, 2.5L Base, Premium, 1998-2001
- Subaru Forester, 2.5L L, S, 1998-2002
- Subaru Forester, 2.5L X, 2005-2013
- Subaru Forester, 2.5L X Premium, 2011-2013
- Subaru Forester, 2.5L X Premium Plus, 2009-2013
- Subaru Forester, 2.5L XT Sports, 2008
- Subaru Impreza, (251) 5MT Outback Sport Wagon, Outback Wagon, RS Sedan, Sedan, TS Wagon 2002-2004
- Subaru Impreza, (251) AT Outback Sport Wagon, Outback Wagon, RS Sedan, Sedan, TS Wagon 2002-2003
- Subaru Impreza, 2.0L Base, 2012-2016
- Subaru Impreza, 2.0L Premium, 2012-2014
- Subaru Impreza, 2.0L Premium Plus, 2012-2013
- Subaru Impreza, 2.5L Outback Sport Wagon, 2005-2006
- Subaru Impreza, 2.5L Outback Wagon, 2005-2011
- Subaru Impreza, 2.5L Premium Sedan, Premium Wagon, 2005-2006
- Subaru Impreza, 2.5L RS Sedan, RS Wagon, RSPRO Wagon, 2005
- Subaru Impreza, 2.5L Sedan, Wagon, 2005-2011
- Subaru Impreza, 2.5L RS Coupe, 1998-2001
- Subaru Impreza, 2.5L RS Sedan, Sedan 2000-2001
- Subaru Legacy, 2.5L Limited, 2005
- Subaru Legacy, 2.5L Limited Wagon, 2005-2007
- Subaru Legacy, 2.5L SE Wagon, 2005-2006
- Subaru Legacy, 2.5L Sedan, 2005-2009
- Subaru Legacy, 2.5L Premium Sedan, 2010-2012, 2017
- Subaru Legacy, 2.5L Sedan, 2010-2013, 2017
- Subaru Legacy, 2.5L Baja Pickup, 2002-2005
- Subaru Legacy, 2.5L Baja-S Pickup, 2002-2006
- Subaru Legacy, 2.5L Base Wagon, Brighton Wagon 2000-2003
- Subaru Legacy, 2.5L GT Limited Sedan, GT Sedan, GT Wagon, 1997-2004
- Subaru Legacy, 2.5L L Sedan, L Wagon, L.L Bean WagonSubaru Legacy, 2.5L Limited Touring Wagon, Outback Touring Wagon, 1997-1999
- Subaru Legacy, 2.5L Outback Wagon, VDC Wagon 2000-2004
- Subaru Legacy, 2.5L Turbo Baja-B Pickup, 2003
- Subaru Outback, 2.5L Base, 2005-2007,2009
- Subaru Outback, 2.5L Limited 2005-2006
- Subaru Outback, 2.5L Base, 2010-2013, 2017
- Subaru Outback, 2.5L Premium, 2010-2014, 2017
- Toyota GR86/Subaru BRZ, 2.4L, 2022
- Questions? Please e-mail or call!
