OVERVIEW
The Verus Engineering Rear Diffuser combines function, form, and science to deliver unparalleled fit, performance, and style to your 10th Gen Honda Civic Type R. The unit is produced from aluminum, allowing us to keep weight down and longevity up. The entire center section of the diffuser can be tilted to fit a variety of exhausts while the entire diffuser itself is designed to translate vertically an inch to improve fitment as well. The center section of the diffuser can ultimately be left off if the muffler hangs too low.

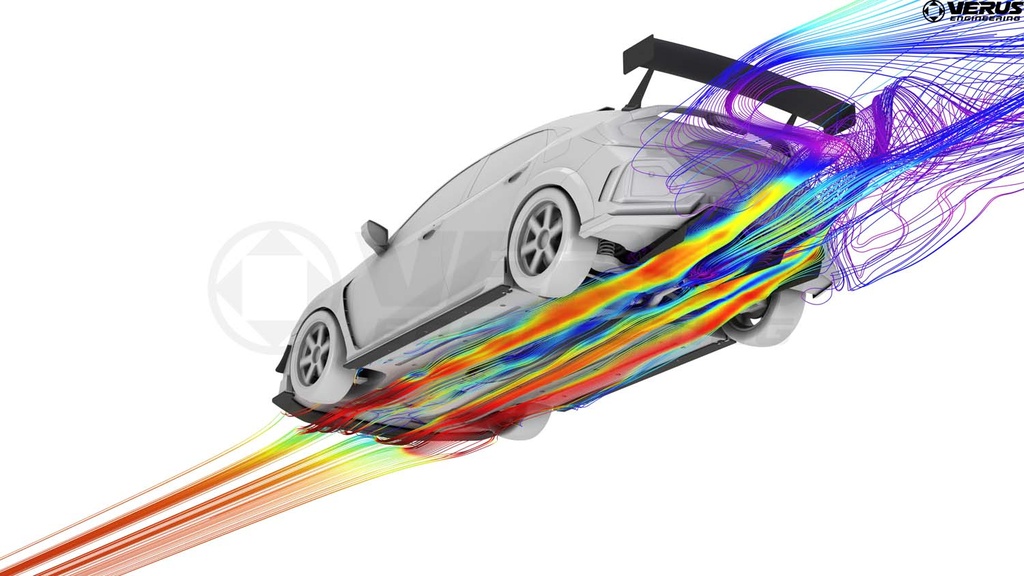

Utilizing state-of-the-art analysis software during the R&D process, we were able to extract more performance for the given build volume; increasing downforce generated and drag reduced from the addition of the rear diffuser.
During the design process; we utilized scan data obtained internally. This resulted in a product that features a near OEM fit and finish.
The Rear Diffuser was designed for owners looking for function and form; specifically with a less aggressive strake design to make the diffuser a more subtle addition to an already aggressive looking vehicle.
WHAT IS INCLUDED

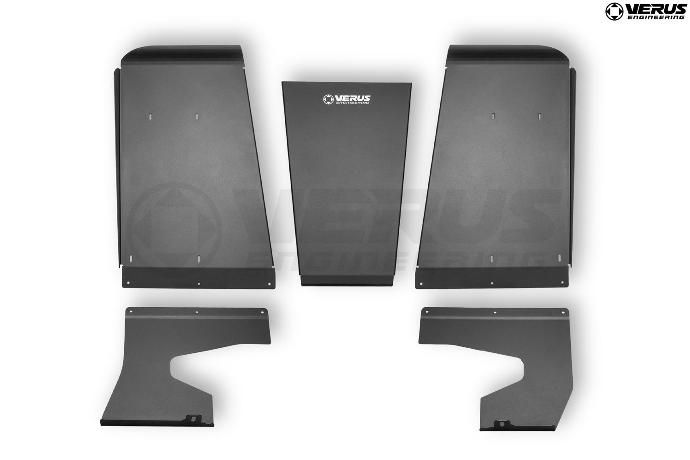

- Rear Diffuser Main Plane (3)

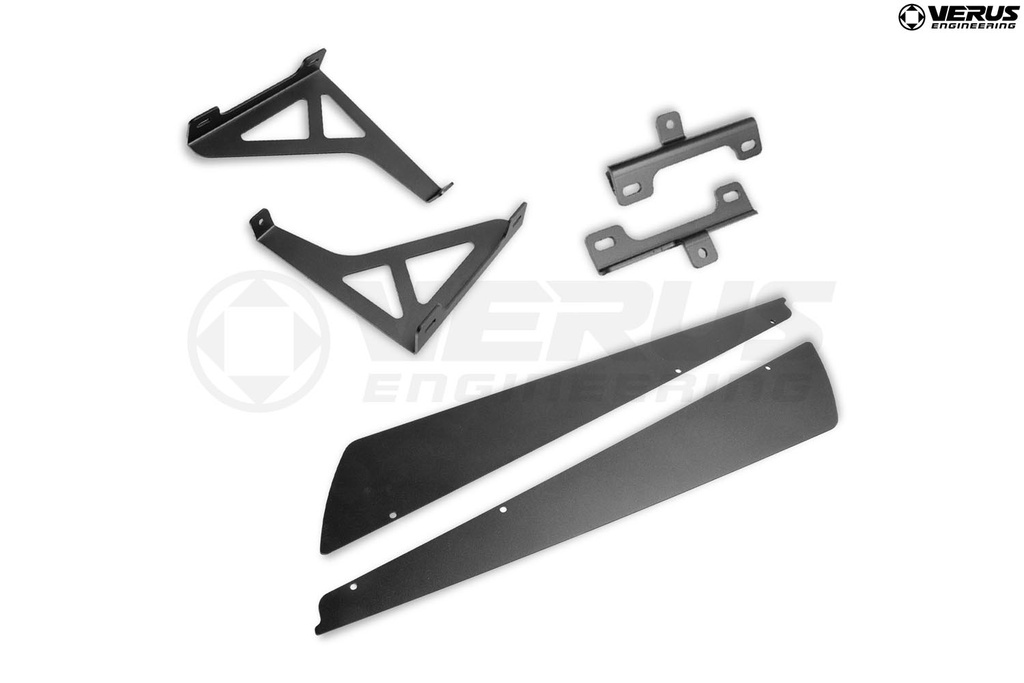

- Rear Diffuser Front Bracket (2)
- Rear Diffuser Rear Bracket (4)
- Rear Diffuser Strake (2)
- Hardware Kit, Includes All Necessary Components for a Seamless Install
Features:
Reduce Drag
Reduce Lift (Increase Downforce)
Improved Overall Aerodynamic Efficiency (Increase L/D)
Increase Tire Grip at Speed
Simple, Non-Invasive Bolt-on Design
Features:
Reduce Drag
Reduce Lift (Increase Downforce)
Improved Overall Aerodynamic Efficiency (Increase L/D)
Increase Tire Grip at Speed
Simple, Non-Invasive Bolt-on Design
Specifications:
- CFD Optimized Design
- 5052-H32 Sheet Aluminum Composition
- CNC Laser Cut
- CNC Press Brake Bent
- Powder-coated Low Gloss Textured Black
- Stainless Hardware Throughout
- Unique Strake-to-Mainplane Construction
- Made in the U.S.A.
Specifications:
- CFD Optimized Design
- 5052-H32 Sheet Aluminum Composition
- CNC Laser Cut
- CNC Press Brake Bent
- Powder-coated Low Gloss Textured Black
- Stainless Hardware Throughout
- Unique Strake-to-Mainplane Construction
- Made in the U.S.A.
Science:
The rear diffuser is part of the Ventus 1 and 2 packages for the CTR. The goal of these kits is to improve aerodynamic performance over the factory in a safe and balanced fashion. The Ventus 1 package is designed for the enthusiast who frequents track days and wants an effective aerodynamic package that balances the car at speed without a major hit in drag. The Ventus 2 package steps that up a notch and improves downforce quite significantly with a slight bump in drag as well. All the components were designed to work together as a package so the car is balanced and safe at speed.
Science:
The rear diffuser is part of the Ventus 1 and 2 packages for the CTR. The goal of these kits is to improve aerodynamic performance over the factory in a safe and balanced fashion. The Ventus 1 package is designed for the enthusiast who frequents track days and wants an effective aerodynamic package that balances the car at speed without a major hit in drag. The Ventus 2 package steps that up a notch and improves downforce quite significantly with a slight bump in drag as well. All the components were designed to work together as a package so the car is balanced and safe at speed.
Confirmed Exhaust Fitment:
- Stock Exhaust
- Various Muffler Deletes
- HKS Spec-L
- HKS Street Exhaust (Requires All Spacers and extra 45mm Button Head Caps Screws)
- J's Racing Exhaust
- Remus USA
Exhaust Requiring Rear Diffuser Trimming:
- Blitz Nur-Spec
- Greddy DD-R (Slight Trimming on of Rear Center Diffuser Plane)
- Greddy Supreme SP
- HKS Legamax
- Invidia R400
Simple to Install:
We're here to help you through the install process! We offer videos and detailed install manuals for the majority of our products.
For additional assistance and information, be sure to e-mail us at [email protected].
What do Rear Diffusers actually do?
Unsure on what our Rear Diffusers actually do? Be sure to check out our video!
Confirmed Exhaust Fitment:
- Stock Exhaust
- Various Muffler Deletes
- HKS Spec-L
- HKS Street Exhaust (Requires All Spacers and extra 45mm Button Head Caps Screws)
- J's Racing Exhaust
- Remus USA
Exhaust Requiring Rear Diffuser Trimming:
- Blitz Nur-Spec
- Greddy DD-R (Slight Trimming on of Rear Center Diffuser Plane)
- Greddy Supreme SP
- HKS Legamax
- Invidia R400
